Rotary Compressor Pump Vane

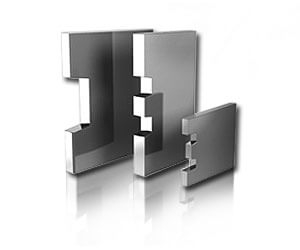

Rotary Compressor Pump Vanes

What is a rotary compressor pump vane? A rotary vane pump is a positive-displacement pump that consists of vanes mounted to a rotor that rotates inside of a cavity.

Rotary vane pump comes with advantages that because rotary vane type vacuum pump in the gas compression is isothermal, it can pump flammable and explosive gas. Furthermore, there is no exhaust valve and friction surface, it can pump gas with dust, non-condensable gas, and water mixture. With these outstanding features, it is widely used.

However, disadvantage would be the low efficiency. It is generally around 30%, better can amount to 50% only.

How does a rotary vane vacuum pump work? Vanes are allowed to slide into and out of the rotor and seal on all edges, creating vane chambers that do the pumping work.

Mountop supplies global customers a series of quality pump vanes for rotary compressor pumps with excellent quality. If you need more information about our rotary compressor pump vanes, please do not feel hesitated to contact us.

  1. Material : SKH51, M2 , High Speed Steel
  2. Hardness : HRC 60°~65°
  3. Precision : 0.003~0.005mm or custom-made is acceptable。
Thickness Width Length Radius Precision
3.18 21.9 25.394 R3.18
3.18 21.9 20.494 R3.18
3.18 24 29.987 R3.18
3.205 23 22.2 R4
4.78 26.4 25.389 R3.18
4.78 26.4 34.988 R3.18
4.762 35.23 22.367 R3.5
4.762 35.23 24.601 R3.5
4.762 35.23 26.507 R3.5
4.762 35.23 29.047 R3.5
4.762 35.23 32.425 R3.5
4.762 35.23 35.778 R3.5
3.2 22 22.8 R4
3.2 22 30.8 R4
4.74 23 28 R6
4.74 23 34 R6
