Hydraulic Pump Vane


If you need further information about our hydraulic pump vanes, please feel free to contact us soon. To provide the best hydraulic pump vanes for our customers is our main goal. Mountop Precision can be your best choice for hydraulic pumps vane supplier and manufacturer.

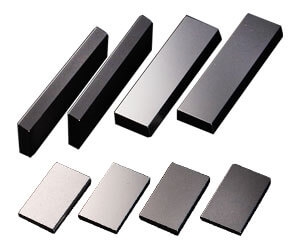

Hydraulic Pump Vanes

  1. Material : SKH51, M2 , High Speed Steel
  2. Hardness : HRC 60°~65°
  3. Precision : 0.003~0.005mm or custom-made is acceptable。
Thickness Width Length Radius Precision
1.6 9 12 +R0.9
1.6 9 18 +R0.9
1.6 8.45 20 +R0.9
1.6 9.65 22 +R0.9
1.8 8 22 -R1.5
1.8 8 30 -R1.5
1.8 9.5 30 -R1.5
1.8 10 30 (-R1.5)
x
(+R1.5)
1.8 10 37 -R1.5
Thickness Width Length Radius Precision
1.8 12 30 -R1.5
1.8 12 37 -R1.5
1.8 12 14 -R1.5
1.8 12 18 -R1.5
1.8 12 22 -R1.5
2.2 12 26 -R1.8
2.2 12 30 -R1.8
2.2 17 24 -R1.8
2.2 19 24 -R1.8
2.2 17 30 -R1.8
2.2 17 39 -R1.8
2.2 19 19 -R1.8
2.2 19 30 -R1.8
2.2 19 32 -R1.8
2.2 19 42 -R1.8
2.4 18 55 -R1.8
